CONTOUR™
Melamine Foam Acoustical Ceiling Tiles
• 100% Fiber Free
• Distinctive - Decorative
• High Acoustical Performance
• Create Your Own Pattern
MATERIAL: Melamine Acoustical Foam

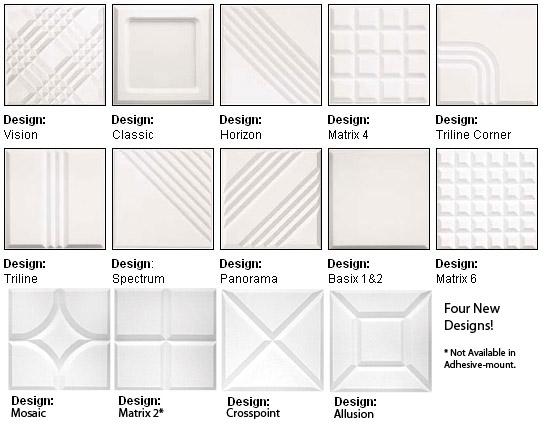

PATTERN: 10 patterns to select from. Special patterns available upon request.
FEATURES: Color and patterns provide distinctive appearance.
APPLICATIONS: Open office areas, conference rooms, theaters, cafeterias/restaurants, retail stores, medical facilities, auditoriums, hotels, night clubs, assembly areas and radio dispatch centers.
THICKNESS: 1 and 1 3/4" SIZE: Nominal 2’x2’
COLOR: Hypalon Arctic White, Hypalon Grey Mist, Hypalon Black Onyx, Hypalon Almond.
FLAMMABILITY: Class A ASTM E-84, Natural F/S SD Painted
|
|
|
|
|
|
|
|
|
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz |
NRC |
| Foam @ 1" |
0.63 |
0.54 |
0.81 |
1.24 |
1.30 |
1.36 |
0.95 |
| Foam @ 1 3/4" |
0.43 |
0.73 |
1.18 |
1.44 |
1.44 |
1.54 |
1.20 |
Click to Enlarge
