HD Double Deflection Neoprene Hangers

HD Neoprene Hangers offer the same increase static deflection and vibration control as ND mounts but in a sturdy steel hanger box.

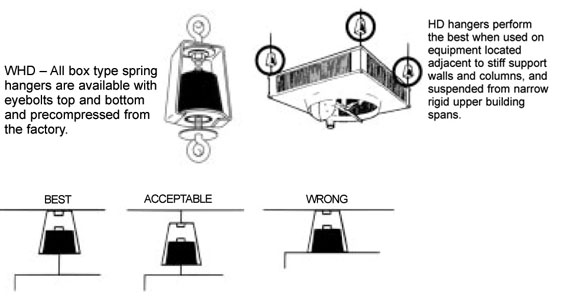

HD HANGER INSTALLATION: Install hangers with gap on underside as shown. This allows the isolators to operate efficiently. The gaps also compensate for minor misalignment. Direct contact of the unit and hanger box "short circuits" the isolation.

When suspending equipment from very wide vibration sensitive spans it may be necessary to select spring hangers with even higher deflections in order to cancel the effects of the span's own deflection or "sag". The isolator selected must have a static deflection at least three times grater than the span's deflection to insure minimum effective vibration control.

HD Neoprene Hangers

Type & Size (Color Mark)	Durometer	Rated Capacity Range (lbs)	Max Rated Defl (in)	D	H	W	LRP	MRD	Price
HD-Green	40	Up to 35	0.20	1 3/4	2 1/4	1 7/8	1 1/4	3/8	$17.00
HD-White	60	35 - 75	0.20	1 3/4	2 1/4	1 7/8	1 1/4	3/8	$17.00
HD-A-Black	30	Up to 45	0.35	2	2 3/4	2 1/4	2 1/4	1/2	$21.10
HD-A-Green	40	30 - 75	0.35	2	2 3/4	2 1/4	2 1/4	1/2	$21.10
HD-A-Red	50	60 - 125	0.35	2	2 3/4	2 1/4	2 1/4	1/2	$21.10
HD-B-Red	50	Up to 235	0.40	3 1/4	4 1/2	4 1/4	3	3/4	$47.60
HD-B-White	60	180 - 380	0.40	3 1/4	4 1/2	4 1/4	3	3/4	$47.60
HD-B-Yellow	70	320 - 625	0.40	3 1/4	4 1/2	4 1/4	3	3/4	$47.60
